Extractors

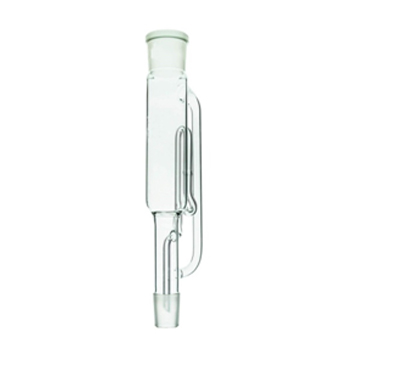

  • 9009 – Extractors

    Soxhlet, Interchangeable Joint


    • Complies with IS 10640
    • Designed with a bulb in the siphon tube near the top, to aid the siphoning action
    • The vapour tube also protects the siphon tube from accidental damage

    Product code Capacity (ml) Interchangeable Joint (Socket) Interchangeable Joint (Cone) Quantity Per case
    EX90090S1 20 24 / 29 19 / 26 2
    EX90090S2 40 34 / 35 24 / 29 2
    EX90090S3 60 34 / 35 24 / 29 2
    EX90090S4 100 34 / 35 24 / 29 2
    EX90090S5 100 40 / 38 24 / 29 2
    EX90090S6 200 50 / 42 24 / 29 2
    EX90090S7 400 50 / 42 24 / 29 2
    EX90090S8 600 50 / 42 24 / 29 2
    EX90090S9 1000 55 / 44 34 / 35 2
    EX90090S10 2000 55 / 44 34 / 35 2
    EX90090S11 3000 55 / 44 34 / 35 2
  • 9010– Condensors, Allihn

    For Soxhlet Extraction Apparatus


    • Greater surface area than the Liebig Condenser owing to a series of bulbs, resulting in higher cooling capacity6
    • Ideal for laboratory scale refluxing

    Product code Size Interchangeable Joint (Cone) Quantity Per case
    CO90100S1 Small 34 / 35 2
    CO90100S2 Medium 40 / 38 2
    CO90100S3 Largen 50 / 42 2

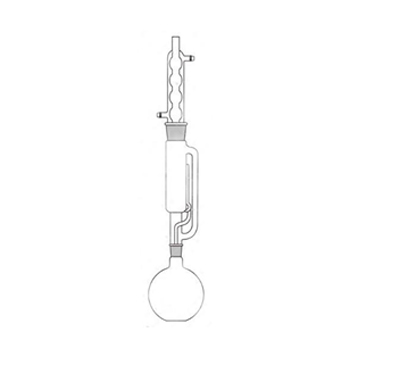

  • 9011– Extraction Apparatus

    Soxhlet Complete With Allihn Condenser Interchangeable Joint


    Product code ExtractorCapacity (ml) Flask size (ml) Allihn Condenser (mm) Quantity Per case
    EX90110S1 20 50 200 1
    EX90110S2 40 100 200 1
    EX90110S3 60 150 200 1
    EX90110S4 100 250 200 1
    EX90110S5 200 500 250 1
    EX90110S6 500* 2000 300 1
    EX90110S7 1000* 3000 300 1
    EX90110S8 2000* 5000 400 1
