Condensers

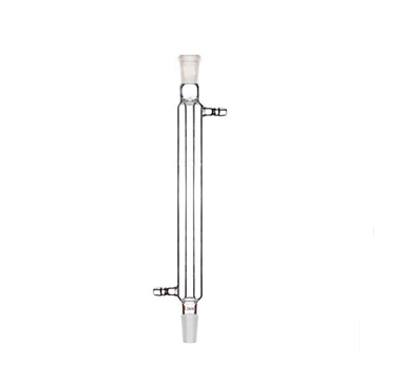

  • 9022– Condensers

    Liebig, Drip Tip, Interchangeable Inner and Outer Joint


    • The light wall of the inner tube facilitates efficient heat transfer• Ideal for laboratory scale refluxing
    • Low cooling capacity
    • Used for distillate separation

    Product code Approx Jacket length (mm) Ground Joint Quantity Per case
    CO90220S1 60 10 / 19 2
    CO90220S2 100 10 / 19 2
    CO90220S3 100 14 / 23 2
    CO90220S4 200 19 / 26 2
    CO90220S5 200 24 / 29 2
    CO90220S6 300 19 / 26 2
    CO90220S7 300 24 / 29 2
    CO90220S7 400 19 / 26 2
    CO90220S8 500 24 / 29 2

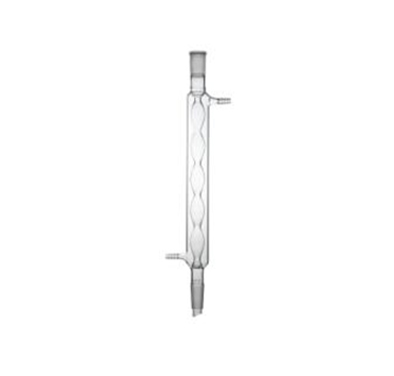

  • 9023– Condensers

    Allihn, Drip Tip, Interchangeable Inner and Outer Joint


    • Greater surface area than the Liebig Condenser owing to a series of bulbs, resulting in higher cooling capacity
    • Ideal for laboratory scale refluxing

    Product code Approx Jacket length (mm) Approx Overall height (mm) Ground Joint (Socket & Cone) Quantity Per case
    CO90230S1 200 330 19 / 26 2
    CO90230S2 200 336 24 / 29 2
    CO90230S3 300 444 19 / 26 2
    CO90230S4 300 450 24 / 29 2
    CO90230S5 400 550 24 / 29 2
    CO90230S6 500 650 24 / 29 2
    CO90230S7 500 662 34 / 35 2
    CO90230S8 600 750 29 / 32 2

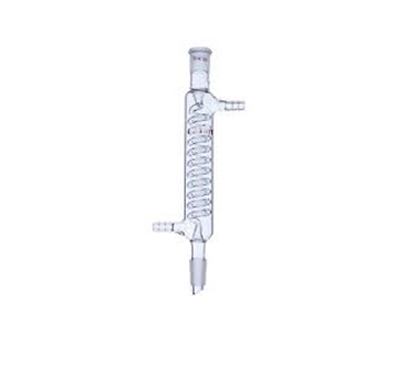

  • 9024– Condensers

    Graham, Coiled Distillate Type, Drip Tip, Interchangeable Inner and Outer Joint


    • The coiled condensation tubes result in greater surface area for cooling• Ideal for laboratory scale refluxing
    • Designed with top standard taper outer and lower inner drip tip joint

    Product code Approx Jacket length (mm) Approx Overall height (mm) Ground Joint (Socket & Cone) Quantity Per case
    CO90240S1 150 428 14 / 23 2
    CO90240S2 200 434 19 / 26 2
    CO90240S3 250 434 19 / 26 2
    CO90240S4 250 440 24 / 29 2
    CO90240S5 300 450 24 / 29 2
    CO90240S6 400 550 24 / 29 2
    CO90240S7 500 650 24 / 29 2
    CO90240S8 500 662 34 / 35 2
    CO90240S9 600 662 34 / 35 2

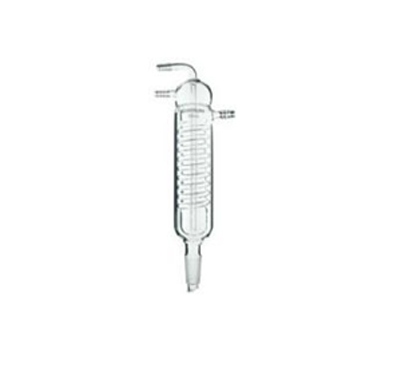

  • 9025– Condensers

    Friedrichs, Drip Tip, Interchangeable Inner and Outer Joint


    • Specially designed inner spiral tubes ensure along vapour path
    • Offer better heat transfer and anti-flooding capabilities

    Product code Approx Overall height (mm) Ground Joint (Socket & Cone) Quantity Per case
    CO90250S1 344 19 / 26 5
    CO90250S2 350 24 / 29 5

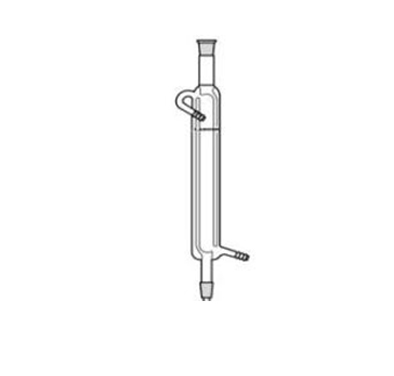

  • 9026– Condensers

    Double Surface


    Product code Approx Overall height (mm) Ground Joint (Socket & Cone) Quantity Per case
    CO90260S1 200 19 / 26 5
    CO90260S2 200 24 / 29 5
    CO90260S3 300 19 / 26 5
    CO90260S4 300 24 / 29 5
