Cylinders

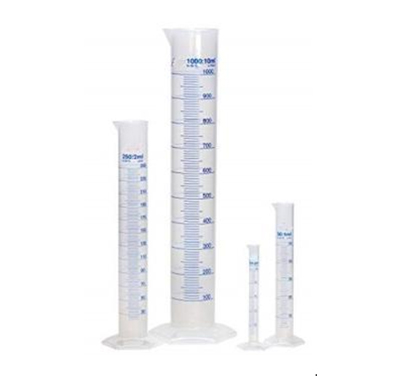

  • 5000 – Cylinder

    Graduated, Single Metric Scale, with Pour Out, with Hexagonal Base,Class A, with Certificate


    • Complies with IS 878, EN ISO 4788.
    • Each cylinder is engraved with a unique serial number, and comes with a Certificate of Calibration traceable to national standards
    • Sturdy hexagonal base prevents roll-over and ensures greater stability. Available with round base on request.
    • Markings are made in Blue enamel inscriptions.

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Quantity Per case
    CY5000005 5 0.1 0.05 5
    CY5000010 10 0.2 0.1 5
    CY5000020 20* 1.0 0.25 5
    CY5000025 25 0.5 0.25 5
    CY5000050 50 1.0 0.5 5
    CY5000100 100 1.0 0.5 5
    CY5000150 150* 2.0 1.0 5
    CY5000250 250 2.0 1.0 5
    CY5000500 500 5.0 2.5 5
    CY500001L 1000 10.0 5.0 5
    CY500002L 2000 20.0 10.0 5
    CY500003L 3000* 20.0 10.0 1
    CY500005L 5000* 50.0 25.0 1
    CY500010L 10000* 50.0 25.0 1

    • 20 & 150 ml are not covered in any standards

  • 5001 – Cylinder

    Graduated, Single Metric Scale, with Pour Out, with Hexagonal Base, Class B


    • Complies with IS 878, EN ISO 4788.
    • Sturdy hexagonal base prevents roll-over and ensures greater stability. Available with round base on request.
    • Markings are made in Blue enamel inscriptions.

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Quantity Per case
    CY5001005 5 0.1 0.1 5
    CY5001010 10 0.2 0.2 5
    CY5001020 20* 1.0 0.5 5
    CY5001025 25 0.5 0.5 5
    CY5001050 50 1.0 1.0 5
    CY5001100 100 1.0 1.0 5
    CY5001150 150* 2.0 2.0 5
    CY5001250 250 2.0 2.0 5
    CY5001500 500 5.0 5.0 5
    CY500101L 1000 10.0 10.0 5
    CY500102L 2000 20.0 20.0 5

    20 & 150 ml are not covered in any standards

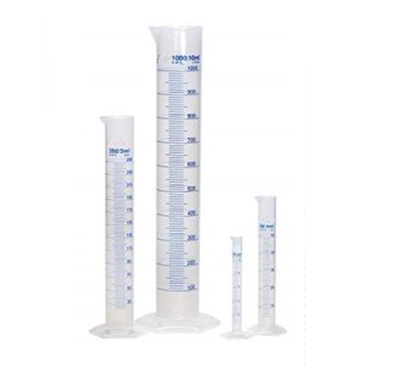

  • 5002 – Cylinder [NABL CERTIFIED]

    Graduated, Single Metric Scale, with Pour Out, with Hexagonal Base, Class A, with Certificate, NABL Certified


    • Complies with IS 878, EN ISO 4788.

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Quantity Per case
    CY5002005 5 0.1 0.05 1
    CY5002010 10 0.2 0.1 1
    CY5002020 20* 1.0 0.25 1
    CY5002025 25 0.5 0.25 1
    CY5002050 50 1.0 0.5 1
    CY5002100 100 1.0 0.5 1
    CY5002150 150* 2.0 1.0 1
    CY5002250 250 2.0 1.0 1
    CY5002500 500 5.0 2.5 1
    CY500201L 1000 10.0 5.0 1
    CY500202L 2000 20.0 10.0 1

    20  ml are not covered in any standards

  • 5003 – Cylinder

    Graduated, Single Metric Scale, with Pour Out, with Hexagonal Base, Accuracy as per ASTM, Class A with Certificate (USP) NABL Certified


    • Complies with ASTM E 1272
    • Each cylinder is engraved with a unique serial number, and comes with a Certificate of Calibration traceable to national standards
    • Calibrated as per Class A tolerances required by the United States Pharmacopoeia (USP)
    • Markings are made in Blue enamel inscriptions.
    • Manufactured with chemically resistant 3.3 borosilicate glass
    • Sturdy hexagonal base prevents roll-over and ensures greater stability. Available with round base on request

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Quantity Per case
    CY5003005 5 0.1 0.05 5
    CY5003010 10 0.1 0.1 5
    CY5003010 10 0.2 0.1 5
    CY5003020 20* 1.0 0.25 5
    CY5003025 25 0.2 0.17 5
    CY5003025 25 0.5 0.17 5
    CY5003050 50 1.0 0.25 5
    CY5003100 100 1.0 0.5 5
    CY5003250 250 2.0 1.0 5
    CY5003500 500 5.0 2.0 5
    CY500301L 1000 10.0 3.0 5
    CY500302L 2000 20.0 6.0 5
    CY500304L 4000 50.0 14.5 1

    20 ml are not covered in any standards

  • 5004 – Cylinder

    Graduated, Single Metric Scale, with Pour Out, with Hexagonal Base, Accuracy as per ASTM, Class B (USP)


    • Complies with ASTM E 1272.
    • Calibrated as per Class B tolerances required by the United States Pharmacopoeia (USP)
    • Markings are made in Blue enamel inscriptions.
    • Manufactured with chemically resistant 3.3 borosilicate glass.
    • Sturdy hexagonal base prevents roll-over and ensures greater stability. Available with round base on request.

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Quantity Per case
    CY5004005 5 0.1 0.1 5
    CY5004010 10 0.1 0.2 5
    CY5004010 10 0.2 0.2 5
    CY5004020 20* 1.0 0.5 5
    CY5004025 25 0.2 0.34 5
    CY5004025 25 0.5 0.34 5
    CY5004050 50 1.0 0.5 5
    CY5004100 100 1.0 1.0 5
    CY5004250 250 2.0 2.0 5
    CY5004500 500 5.0 4.0 5
    CY500401L 1000 10.0 6.0 5
    CY500402L 2000 20.0 12.0 5
    CY500404L 4000 50.0 29.0 1

    20 ml are not covered in any standards

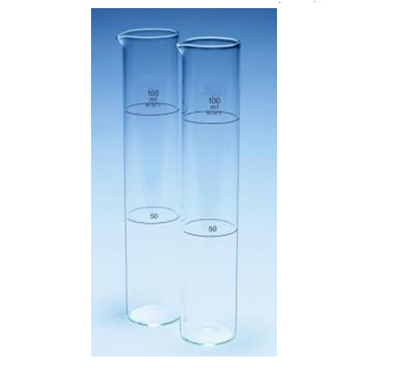

  • 5005 – Cylinder

    5005 – Cylinder


    • Complies with IS 4161.
    • Facilitates colour comparison of water samples• Markings are made in Blue enamel inscriptions
    • Manufactured with chemically resistant 3.3 borosilicate glass.
    • Markings are made in white enamel inscriptions

    Product code Capacity (ml) Approx. OD x Height (mm) Tolerance (+/- ml) Quantity Per case
    CY5005005 50 25 x 150 0.1 20
    CY5005010 100 34 x 180 0.2 20

    100 ml Cylinder is marked at 50 ml and 100 ml

    50 ml Cylinders is marked at 50 ml

  • 5006 – Cylinder

    Graduated, Single Metric Scale, with Penny Head, Interchangeable Stopper with Hexagonal Base,Class A, with Certificate


    • Complies with IS 878, EN ISO 4788.
    • Each cylinder is engraved with a unique serial number, and comes with a certificate of calibration traceable to national standards.
    • Markings are made in Blue enamel inscriptions.
    • With solid glass stopper

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Stopper size Quantity Per case
    CY5006005 5 0.1 0.05 10 / 19 5
    CY5006010 10 0.2 0.1 10 / 19 5
    CY5006020 20* 1.0 0.25 14 / 23 5
    CY5006025 25 0.5 0.25 14 / 23 5
    CY5006050 50 1.0 0.5 14 / 23 5
    CY5006100 100 1.0 0.5 19 / 26 5
    CY5006150 150* 2.0 1.0 24 / 29 5
    CY5006250 250 2.0 1.0 24 / 29 5
    CY5006500 500 5.0 2.5 24 / 29 5
    CY500601L 1000 10.0 5.0 34 / 35 5
    CY500602L 2000 20.0 10.0 34 / 35 5

    • 20 & 150 ml are not covered in any standards

  • 5007 – Cylinder

    Graduated, Single Metric Scale, with Penny Head, Interchangeable Stopper with Hexagonal Base, Class B.


    • Complies with IS 878, EN ISO 4788.
    • Sturdy hexagonal base prevents roll-over and ensures greater stability. Available with round base on request.
    • Markings are made in Blue enamel inscriptions.
    • With solid glass stopper

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Stopper size Quantity Per case
    CY5007005 5 0.1 0.1 10 / 19 5
    CY5007010 10 0.2 0.2 10 / 19 5
    CY5007020 20* 1.0 0.5 14 / 23 5
    CY5007025 25 0.5 0.5 14 / 23 5
    CY5007050 50 1.0 1.0 14 / 23 5
    CY5007100 100 1.0 1.0 19 / 26 5
    CY5007150 150* 2.0 2.0 24 / 29 5
    CY5007250 250 2.0 2.0 24 / 29 5
    CY5007500 500 5.0 5.0 24 / 29 5
    CY500701L 1000 10.0 10.0 34 / 35 5
    CY500702L 2000 20.0 20.0 34 / 35 5

    20 & 150 ml are not covered in any standards

  • 5008 – Cylinder

    Graduated, Single Metric Scale, with Penny Head Interchangeable Stopper, with Hexagonal Base, Accuracy as per ASTM, Class A with Certificate (USP)


    • Complies with ASTM E 1272. Markings are made in Blue enamel inscriptions
    • Each cylinder is engraved with a unique serial number, and comes with a Certificate of Calibration traceable to national standards
    • Calibrated as per Class A tolerances required by the United States Pharmacopoeia (USP).
    • Manufactured with chemically resistant 3.3 borosilicate glass.
    • Sturdy hexagonal base prevents roll-over and ensures greater stability.

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Std. Taper Stopper number Quantity Per case
    CY5008005 5 0.1 0.05 9 5
    CY5008010 10 0.1 0.1 9 5
    CY5008010 10 0.2 0.1 13 5
    CY5008020 20* 1.0 0.25 13 5
    CY5008025 25 0.2 0.17 13 5
    CY5008025 25 0.5 0.17 13 5
    CY5008050 50 1.0 0.25 16 5
    CY5008100 100 1.0 0.5 16 5
    CY5008250 250 2.0 1.0 22 5
    CY5008500 500 5.0 2.0 27 5
    CY500801L 1000 10.0 3.0 32 5
    CY500802L 2000 20.0 6.0 38 5
    CY500804L 4000 50.0 14.5 -- 1

    20 ml are not covered in any standards

  • 5009 – Cylinder

    Graduated, Single Metric Scale, with Penny Head Interchangeable Stopper, with Hexagonal Base, Accuracy as per ASTM, Class B (USP)


    • Complies with ASTM E 1272.
    • Calibrated as per Class B tolerances required by the United States Pharmacopoeia (USP).
    • Manufactured with chemically resistant 3.3 borosilicate glass and Markings are made in Blue enamel inscriptions

    Product code Capacity (ml) Graduation Interval ml Tolerance (+/- ml) Std. Taper Stopper number Quantity Per case
    CY5009005 5 0.1 0.1 9 5
    CY5009010 10 0.1 0.2 9 5
    CY5009010 10 0.2 0.2 13 5
    CY5009020 20* 1.0 0.5 13 5
    CY5009025 25 0.2 0.34 13 5
    CY5009025 25 0.5 0.34 13 5
    CY5009050 50 1.0 0.5 16 5
    CY5009100 100 1.0 1.0 16 5
    CY5009250 250 2.0 2.0 22 5
    CY5009500 500 5.0 4.0 27 5
    CY500901L 1000 10.0 6.0 32 5
    CY500902L 2000 20.0 12.0 38 5
    CY500904L 4000 50.0 29.0 -- 1

    20 ml are not covered in any standards

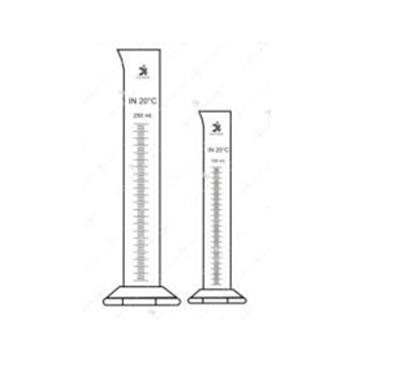

  • 5010 – Cylinder

    Tapped Density Cylinder


    • As Per USP, Ch. 616.

    Product code Capacity (ml) Approx.ID x Height (mm) Weight (gms) Quantity Per case
    CY5010100 100 28  x 260 Max 130 +/-16 20
    CY5010250 250 36 x 335 max 220 +/-44 20
  • 5011 – Cylinder

    Crow Cylinder, Metric Scale, Graduated, With Round Base


    • Used for the collection and measurement of distillate in oil and jar tests..
    • Manufactured with chemically resistance 3.3 borosilicate glass.
    • Markings are made in Blue enamel inscriptions

    Product code Capacity (ml) Graduation Interval (ml) Tolerance (+/- mm) Quantity Per case
    CY50110S1 25 0.5 0.04 2
    CY50110S2 25 0.5 0.1 2
    CY50110S3 50 1.0 0.1 2
    CY50110S4 50 1.0 0.2 2
    CY50110S5 100 1.0 0.2 2
    CY50110S6 100 1.0 0.4 2
  • 5011 – Cylinder

    Rain Measure, Metric Scale, Graduated, With Round Base


    • Used for the collection and measurement of distillate in oil and jar tests..
    • Manufactured with chemically resistance 3.3 borosilicate glass.
    • Markings are made in Blue enamel inscriptions

    Product code Capacity (ml) Graduation Interval (ml) Tolerance (+/- mm) Quantity Per case
    CY50110S1 25 0.5 0.04 2
    CY50110S2 25 0.5 0.1 2
    CY50110S3 50 1.0 0.1 2
    CY50110S4 50 1.0 0.2 2
    CY50110S5 100 1.0 0.2 2
    CY50110S6 100 1.0 0.4 2
  • 5012 – Cylinder

    Cylinder, Metric Scale, Graduated, with wide mouth collector


    • Facilitates pouring of solution into the cylinder.
    • Manufactured with chemically resistance 3.3 borosilicate glass
    • User can choose desired capacity for the #5000, #5001, #5003 & #5004 with wide mouth collector.
