Distillation Unit

Product Information:

• Borosilicate condenser and boiler are fitted with a removable silica sheathed heater. Connectors are screw threaded to enable removal and ease of cleaning.
• Distillate Temperature is around 25 to 45 deg C which is ensured by efficient condenser.
• The unit switches off automatically when water level in boiler falls below heater.
• Cooling water from condenser is re-circulated into the boiling chamber, hence saving energy.
• Boiler is provided with replaceable side overflow for easy draining and cleaning of boiling chamber, which also reduces the chances of breakage.
• Fuse is provided for safety in case of voltage fluctuation or short circuit. There is In-built safety cut off device for protecting the glass from in case of water falling short or overheating.
• Conductivity 1 to 2 (µS/ cm) and PH 5.5 to 6.0.

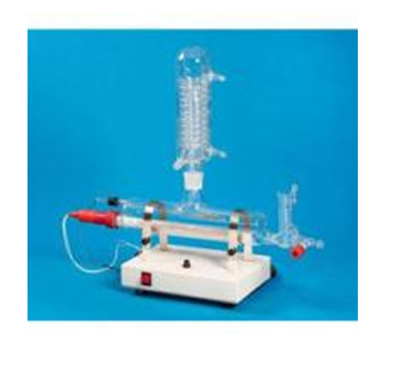

Single Still
Product code	Output (Ltr/ Hr)	Cooling water consumption  (Ltr/ Hr)	Power rating (KW)	Price (Rs)
DU10600S1	1.5	40	1.5	27500
DU10600S2	2.5	60	1.7	28750
DU10600S3	4	120	3.0	36870

• Spares for the water stills are available separately.

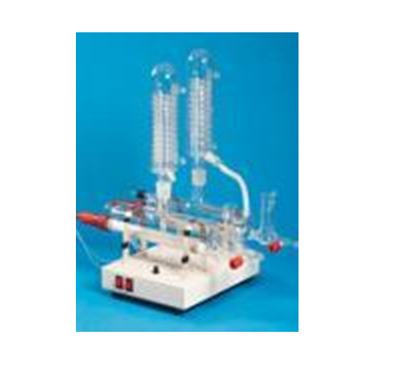

Double Still
Product code	Output (Ltr/ Hr)	Cooling water consumption  (Ltr/ Hr)	Power rating (KW)	Price (Rs)
DU10600D1	1.5	80	3.0	36700
DU10600D2	2.5	120	3.4	48850
DU10600D3	4	150	6.0	70915

Product Information:

• Gate Valve: Conserves cooling water wastage in case of power failure.
• Flow switch: Unit gets shut off in case there is cooling water failure.
• Temperature Switch: The boiler is equipped with a safety temperature switch which shuts off the unit if water level in the boiler falls below the heater, thus saving glass part from any damages.
• Reservoir level sensor: This helps in automatic working of the water distillation equipment. Depending on the water level in the reservoir it will automatically switch on/ off the equipment, thus saving energy. ( Reservoir can be provided with storage capacity of 5, 10 and 20 Liter made of Borosilicate glass or Polypropylene at an extra cost).

Additional In-Built Safety Features

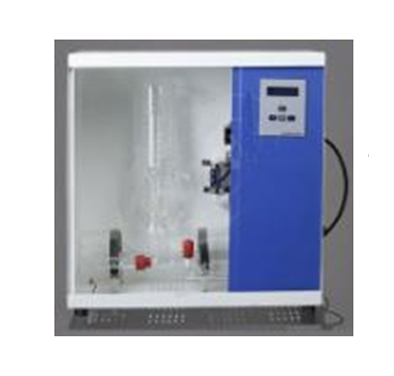

• This is a fully automatic Water Distillation Unit for better and accurate control (Especially in Research Labs and Hospitals)
• Comes with advanced microprocessor based electronic circuitry.
• Alpha numeric LCD shows all messages that correspond to the running of the machine.
• Replaceable silica sheathed Quartz heater- For ease of removal and cleaning when scaling is formed.
• Boiler is provided with replaceable side overflow for easy draining and cleaning of boiling chamber, which also reduces the chances of breakage.

Product code	Output capacity (Lit/Hr)	Stage	Cooling water requirement(Lit/Hr)	Power Rating (Kw)	Price (Rs.)
DU10610A1	2.0	Single stage	90	1.5	64245
DU10610A2	4.0	Single stage	150	3.0	76120
DU10610A3	2.0	Double stage	90	1.5	105670
DU10610A4	4.0	Double stage	150	3.0	127900

Output quality would depend upon the quality of the inlet feed water to the boiler.

Conductivity is < 3.0 µS/ cm and PH is 5.5-6.0.

Spares for the distillation unit are available separately.

• Conductivity is < 3.0 µS/ cm with Borosilicate condenser
• Conductivity is < 2.0 µS/ cm with Quartz condenser.
• Distilled water is Pyrogen free and from heavy metals. Temp 50-60 deg c.

Distilled water is Pyrogen free and from heavy metals. Temp 50-60 deg c.

Product code	Output capacity (Lit/Hr)	Cooling water requirement(Lit/Hr)	Power Rating (Kw)	Price (Rs.)
DU1062SS1	2.5	35	2.0	38560
DU1062SS2	5.0	65	4.4	63275
DU1062SS3	10.0	120	9.0	134200

Single stage distillation with Quartz Condenser

Product code Output capacity (Lit/Hr) Cooling water requirement(Lit/Hr) Power Rating (Kw) Price (Rs.) DU1062SS4 2.5 35 2.0 58900 DU1062SS5 5.0 65 4.4 10760
